NON-SKID PLANK, Stair Tread & SHEETING
The Tilley range of Non-Skid products ensure safety and provide the ultimate in non-skid surfaces. Our walkway products include: Tilley Plank, Tilley Stud Plank, Tilley Non-Skid Sheeting, Fibergrate FRP grating and Meiser Stepbloc D walkway planking. For catwalks, stair treads, mezzanine floors, oil storage platforms, drain covers, servicing pits and architectural detail we have you covered.
Planking

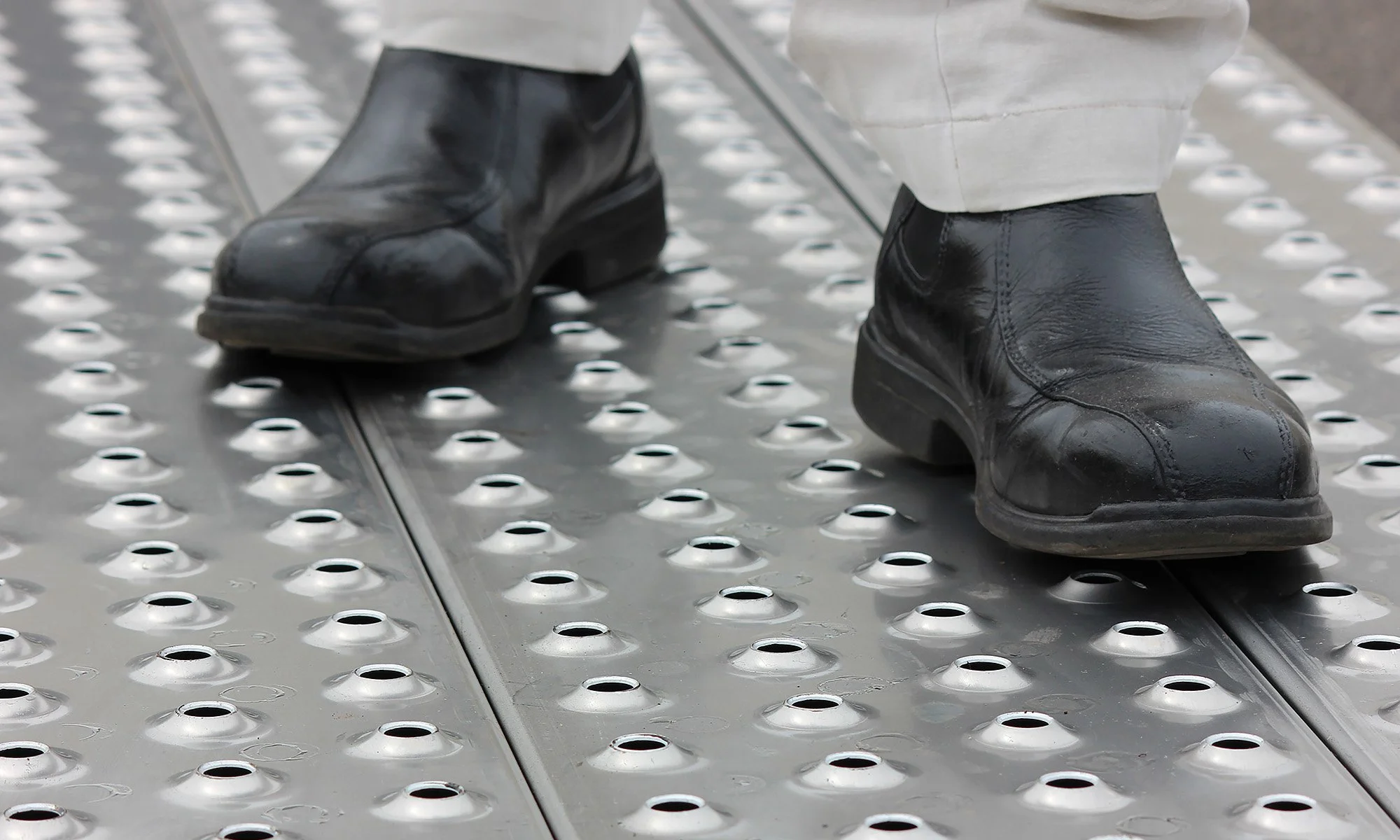

Tilley Plank
Versatile proven non-skid solution for all environments
50mm High, 3000mm Long
*Custom sizes available
-
TPI230AA
· AL · 3.0mmTPI230S
· MSBLK · 2.0mmTPI230SG
· MSHDG · 2.0mmTPI230SS4
· SS304 · 2.0mmTPI230SS6
· S306 · 2.0mm -
TPI300AA
· AL · 3.0mmTPI300S
· MSBLK · 2.0mmTPR300S
· MSBLK · 3.0mmTPI300SG
· MSHDG · 2.0mmTPR300SG
· MSHDG · 3.0mmTPI300SS4
· SS304 · 2.0mmTPI300SS6
· S306 · 2.0mm

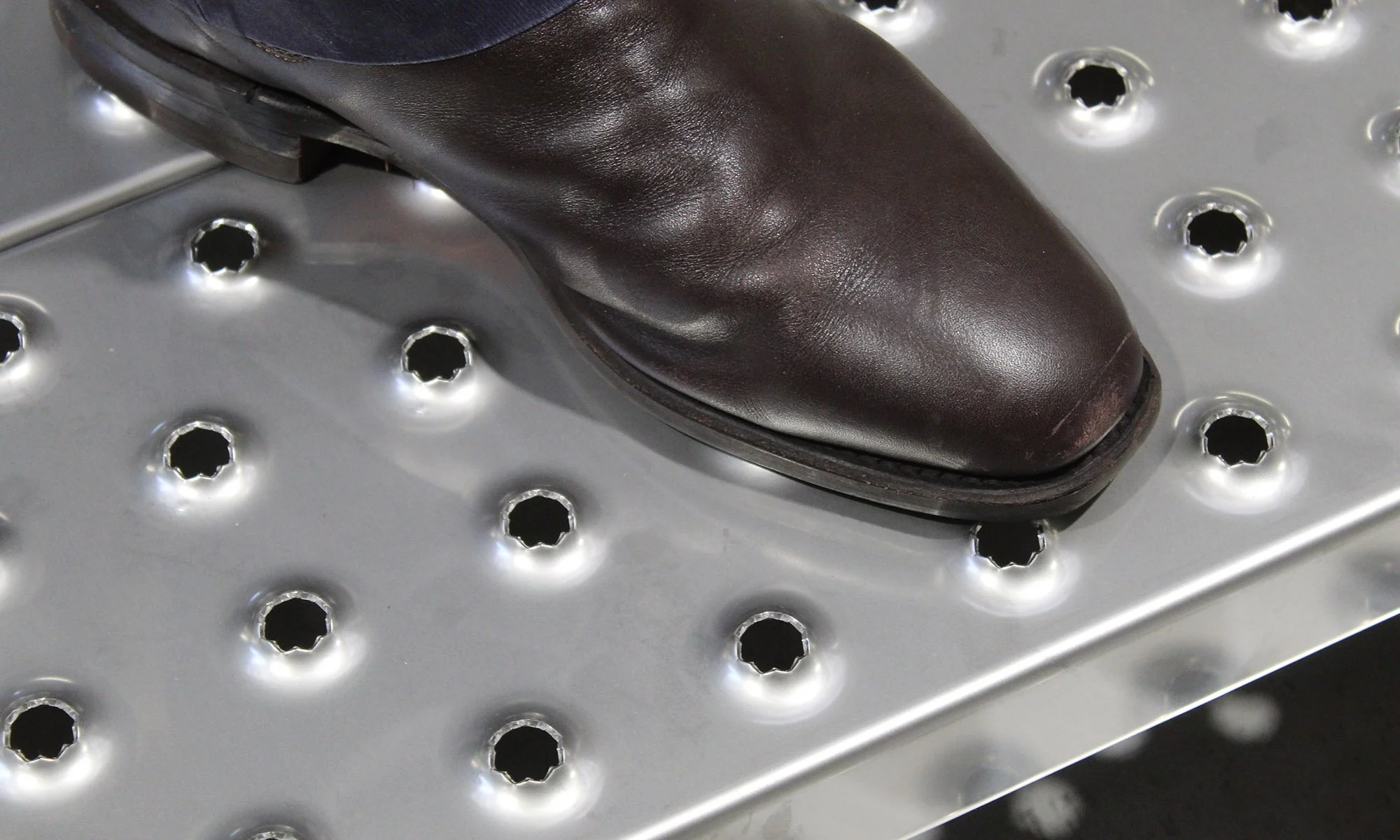

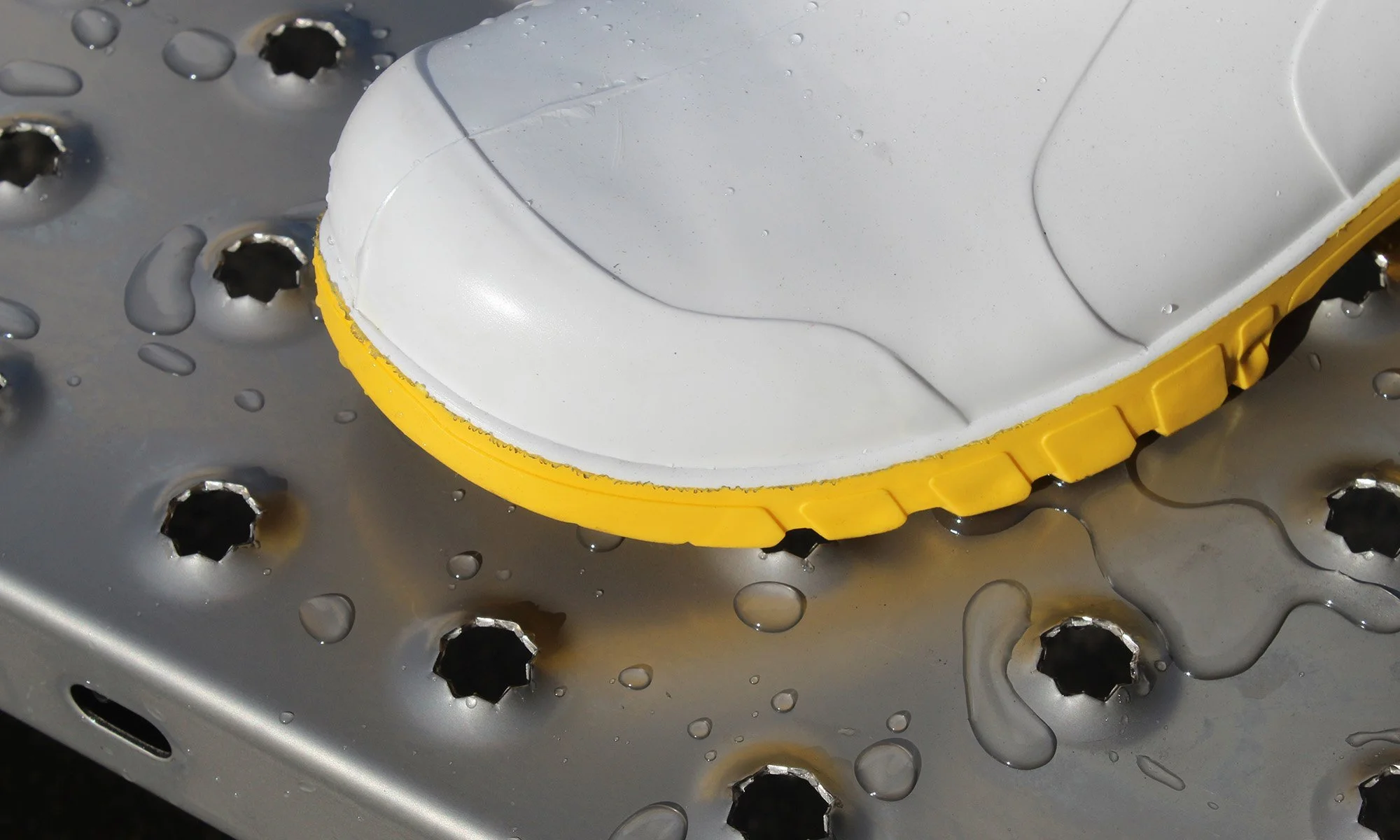

Tilley Star-X Plank
Extra grip for enhanced traction for challenging environments.
50mm High, 3000mm Long
*Custom sizes available
-
TPI230AA-X
· AL · 3.0mmTPI230S-X
· MSBLK · 2.0mmTPI230SG-X
· MSHDG · 2.0mmTPI230SS4-X
· SS304 · 2.0mmTPI230SS6-X
· SS316 · 2.0mm -
TPI300AA-X
· AL · 3.0mmTPI300S-X
· MSBLK · 2.0mmTPI300SG-X
· MSHDG · 2.0mmTPR300SG-X
· MSHDG · 3.0mmTPI300SS4-X
· SS304 · 2.0mmTPI300SS6-X
· S306 · 2.0mm

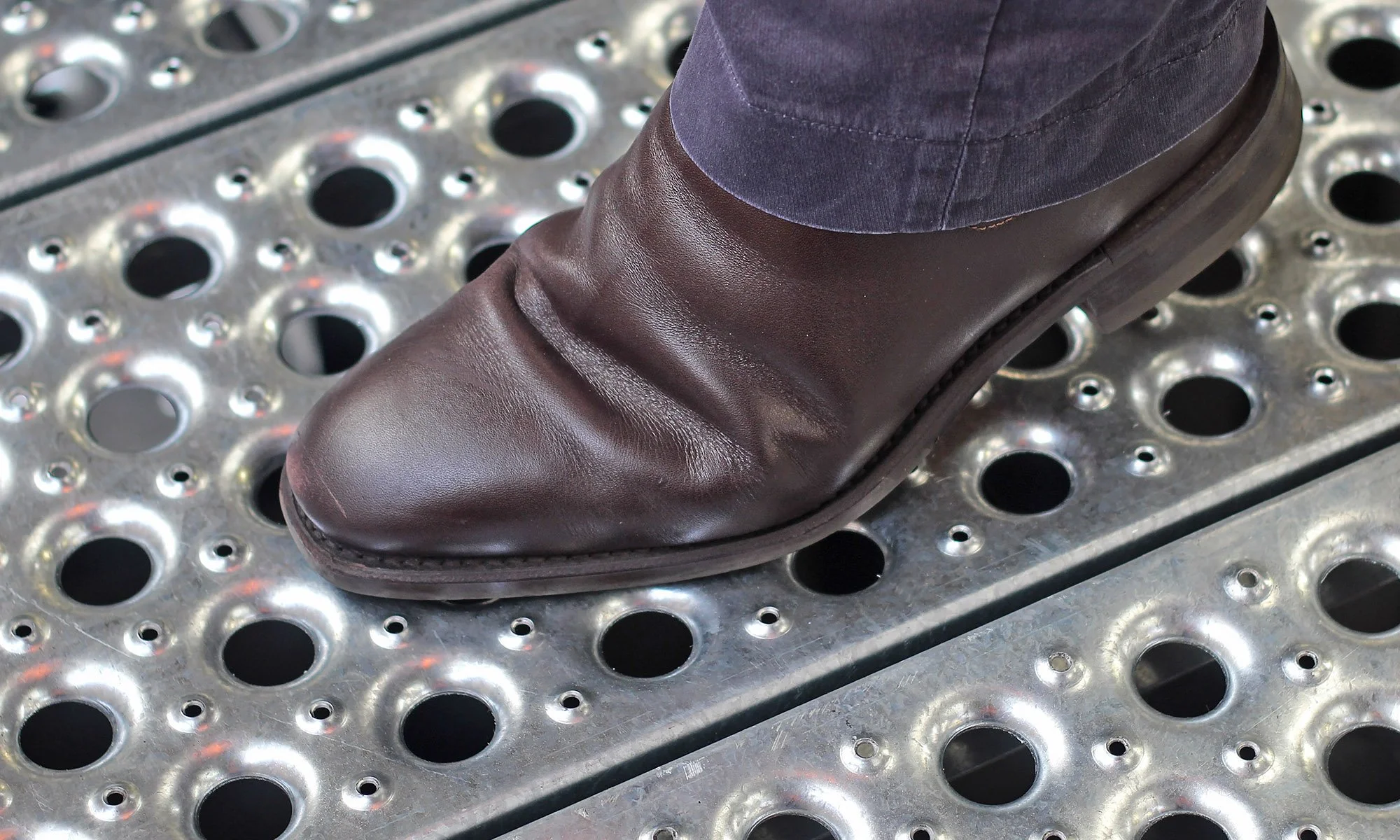

Tilley Stud Plank
Open pattern for easy material pass-through
50mm High, 3000mm Long
*Custom sizes available
-
TSP26520G3
· PreGALV · 2.0mmTSP26525S3
· MSBLK · 2.5mmTSP26525SG3
· MSHDG · 2.5mm

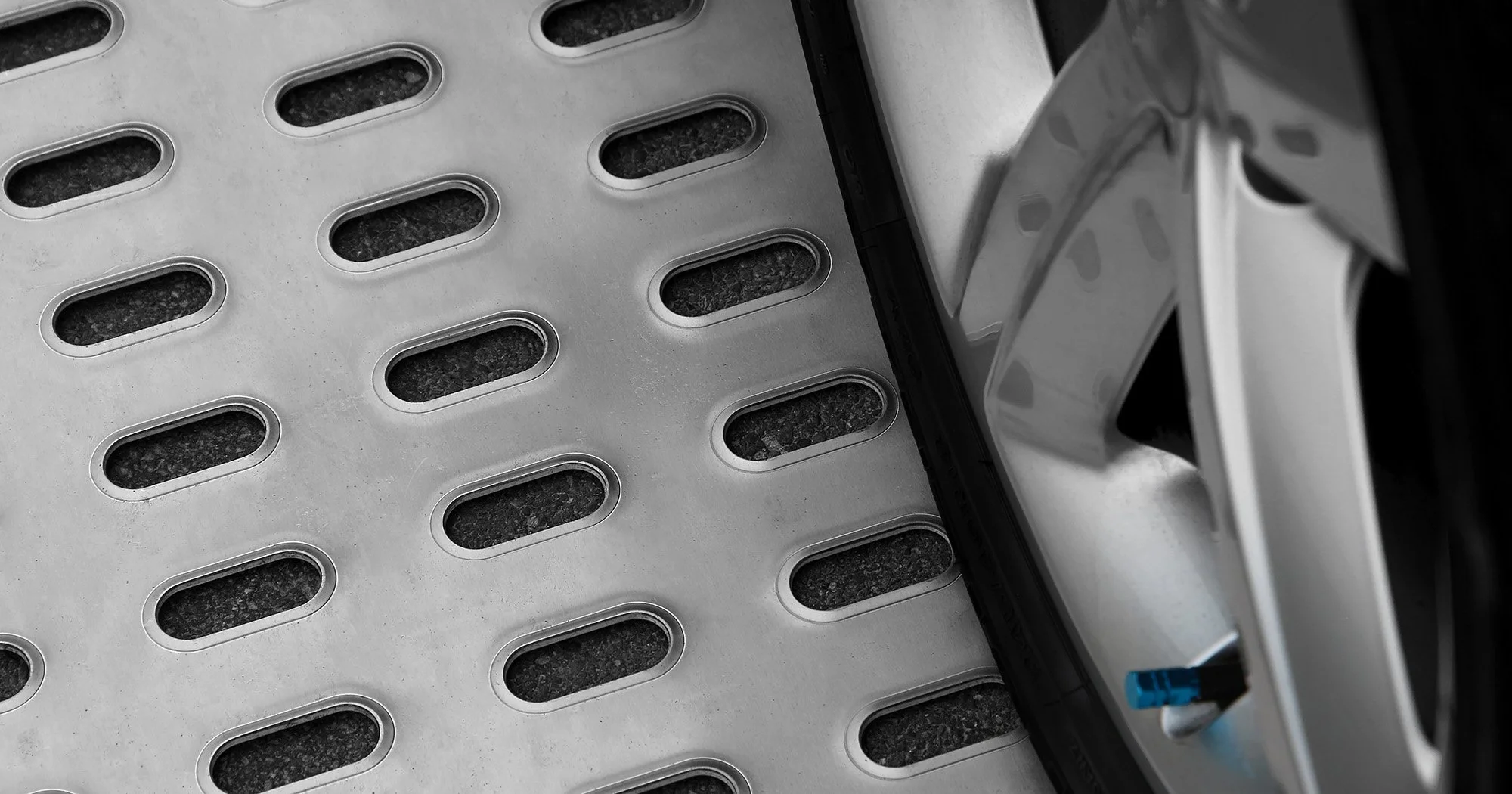

Omni Sheet
Omni sheet is our versatile transportation non-skid and tie-down product. Talk to us about custom planking sizes for all uses including trailers and ramping systems.
Stair Treads

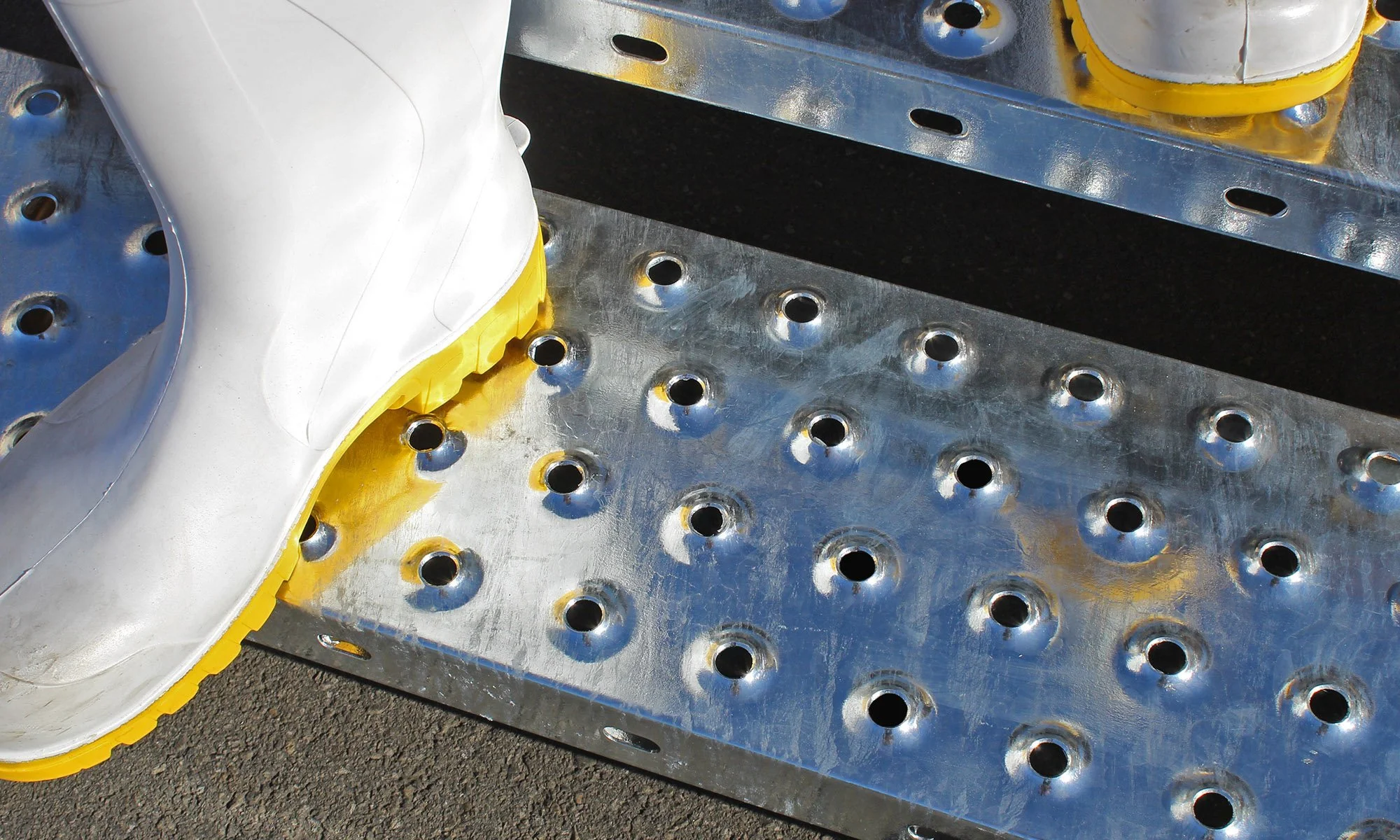

Tilley Stair Tread
Versatile proven non-skid solution for all environments
50mm High
*Custom sizes available
-
TPS230600S
· 600mm Wide
· MSBLK · 2.0mmTPS230750S
· 750mm Wide
· MSBLK · 2.0mmTPS230910S
· 910mm Wide
· MSBLK · 2.0mmTPS230600SG
· 600mm Wide
· MSHDG · 2.0mmTPS230750SG
· 750mm Wide
· MSHDG · 2.0mmTPS230910SG
· 910mm Wide
· MSHDG · 2.0mmTPS230600SS4
· 600mm Wide
· SS304 · 2.0mmTPS230750SS4
· 750mm Wide
· SS304 · 2.0mmTPS230910SS4
· 910mm Wide
· SS304 · 2.0mmTPS230910SS6
· 910mm Wide
· S316 · 2.0mm -
TPS300600S
· 600mm Wide
· MSBLK · 2.5mmTPS300750S
· 750mm Wide
· MSBLK · 2.5mmTPS300910S
· 910mm Wide
· MSBLK · 2.5mmTPS300600SG
· 600mm Wide
· MSHDG · 2.5mmTPS300750SG
· 750mm Wide
· MSHDG · 2.5mmTPS300910SG
· 910mm Wide
· SS304 · 2.5mmTPS300600SS4
· 600mm Wide
· S304 · 2.0mmTPS300750SS4
· 750mm Wide
· S304 · 2.0mmTPS300910SS4
· 910mm Wide
· S304 · 2.0mm
Tilley Star-X Stair Tread
Extra grip for enhanced traction for challenging environments.
50mm High
*Custom sizes available
-
TPS230600S-X
· 600mm Wide
· MSBLK · 2.0mmTPS230750S-X
· 750mm Wide
· MSBLK · 2.0mmTPS230910S-X
· 910mm Wide
· MSBLK · 2.0mmTPS230600SG-X
· 600mm Wide
· MSHDG · 2.0mmTPS230750SG-X
· 750mm Wide
· MSHDG · 2.0mmTPS230910SG-X
· 910mm Wide
· MSHDG · 2.0mmTPS230600SS4-X
· 600mm Wide
· SS304 · 2.0mm -
TPS300600S-X
· 600mm Wide
· MSBLK · 2.5mmTPS300750S-X
· 750mm Wide
· MSBLK · 2.5mmTPS300600SG-X
· 600mm Wide
· MSHDG · 2.5mmTPS300750SG-X
· 750mm Wide
· MSHDG · 2.5mmTPS300910SG-X
· 910mm Wide
· MSHDG · 2.5mm

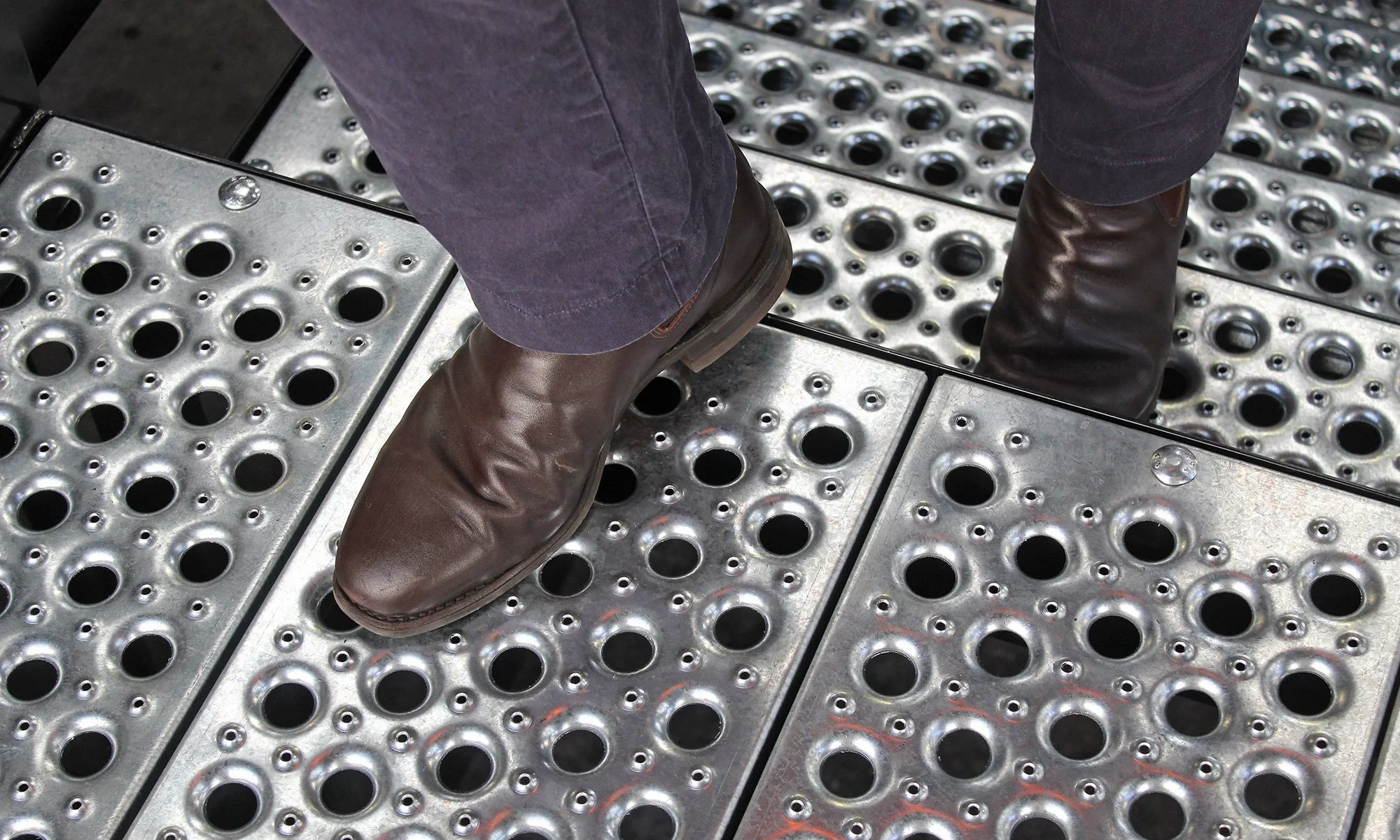

Tilley Stud Stair Tread
Open pattern for easy material pass-through
50mm High
*Custom sizes available
-
TSPS737S
· 737mm Wide
· MSBLK · 2.0mmTSPS618SG
· 618mm Wide
· MSHDG · 2.0mmTSPS737SG
· 737mm Wide
· MSHDG · 2.0mmTSPS916SG
· 916mm Wide
· MSHDG · 2.0mmTSPS916G
· 916mm Wide
· PREGALV · 2.0mm
Sheeting/Grating

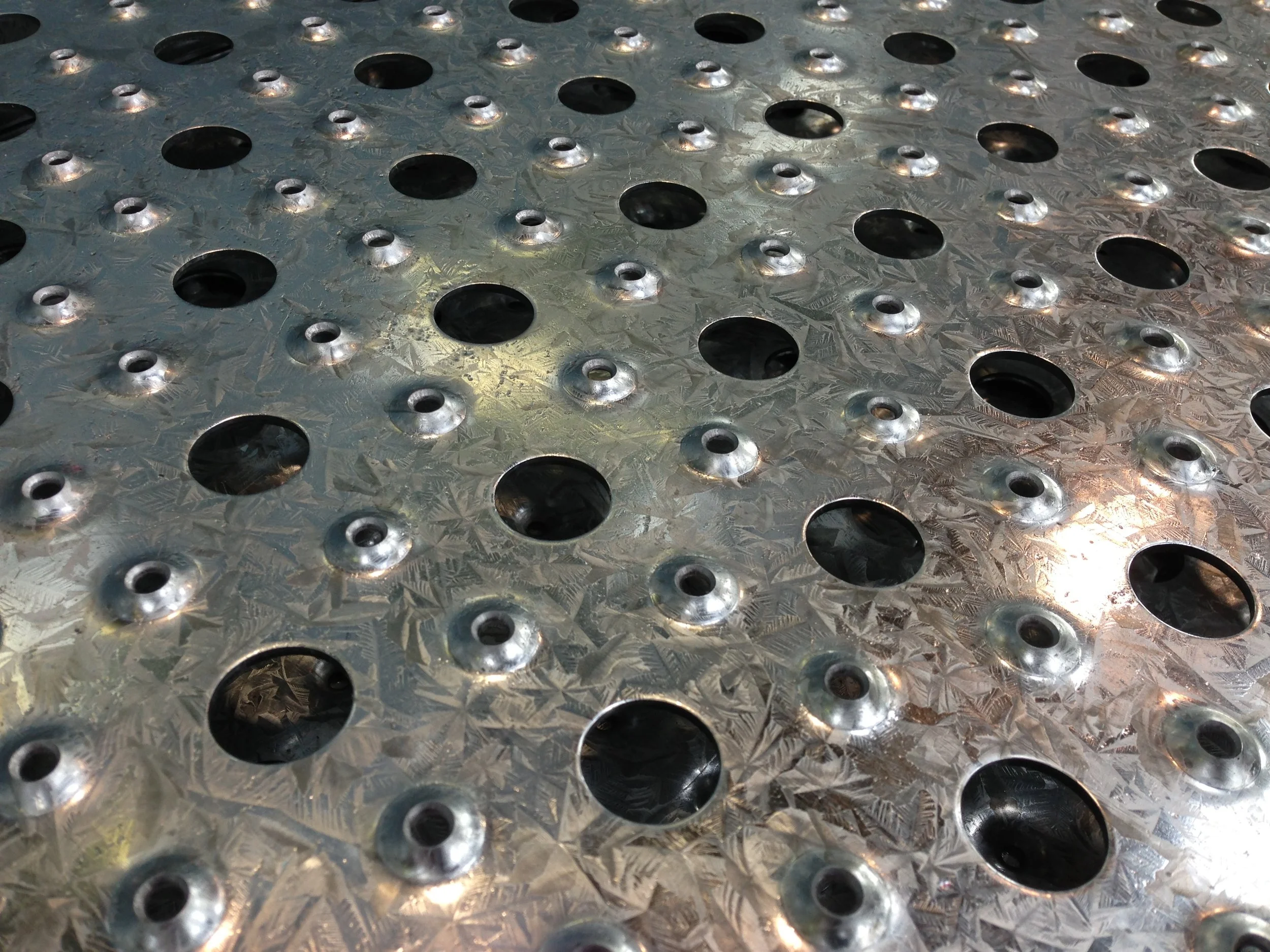

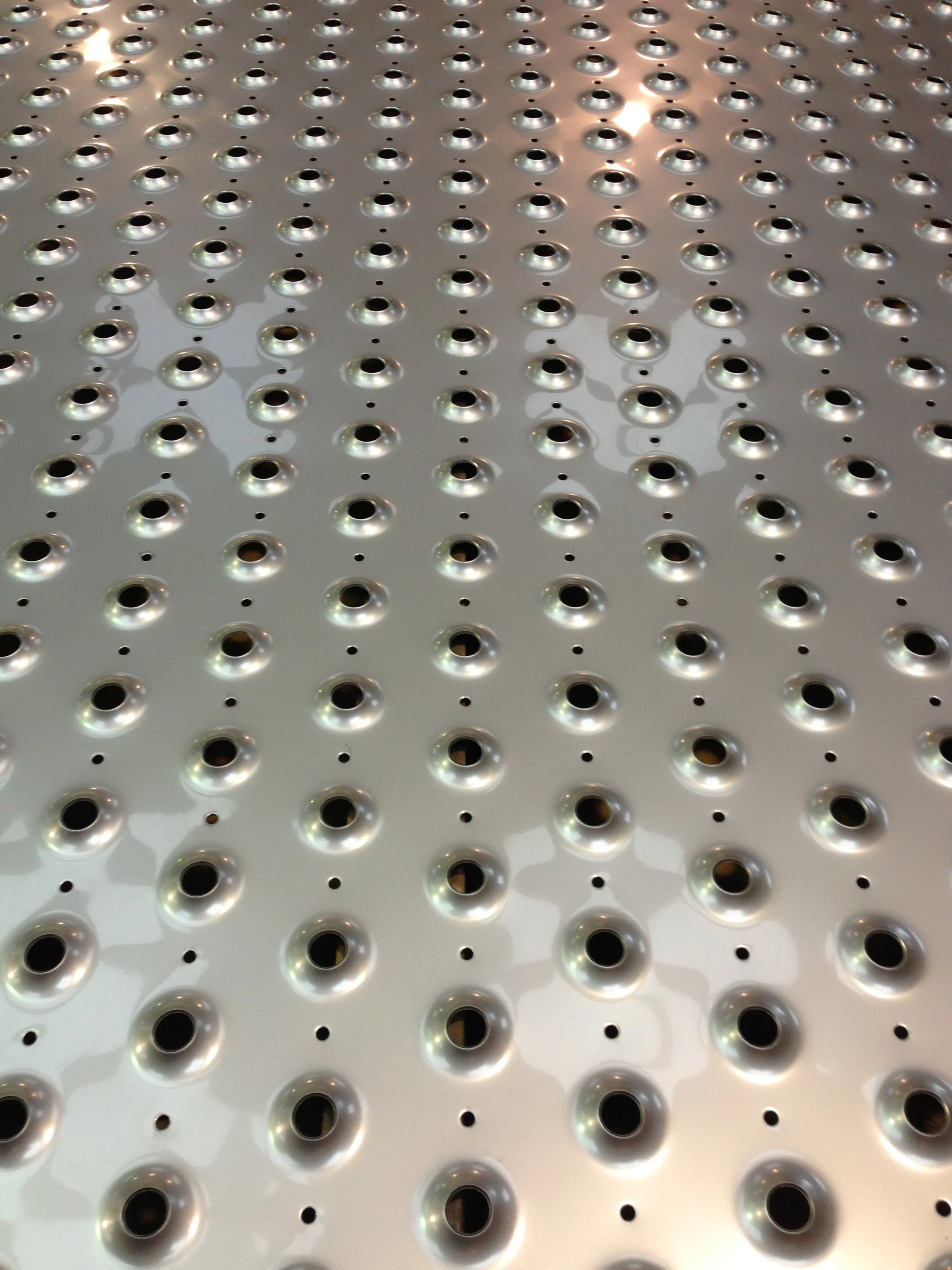

Tilley Non-Skid Sheeting
Versatile proven non-skid solution Ideal for floors, platforms, ramps, stairways, scaffolding and livestock transporting floors.
*Custom sizes available
PMTPA302412
· 2400x1200
· AL · 3.0mm
PMTPMS252412
· 2438x1219
· MSBLK · 2.5mm
PMTPMSHDG252412
· 2438x1219
· MSHDG · 2.5mm
PMTPS304202412
· 2438x1219
· SS304 · 2.0mm
PMTPS316202412
· 2438x1219
· SS316 · 2.0mm

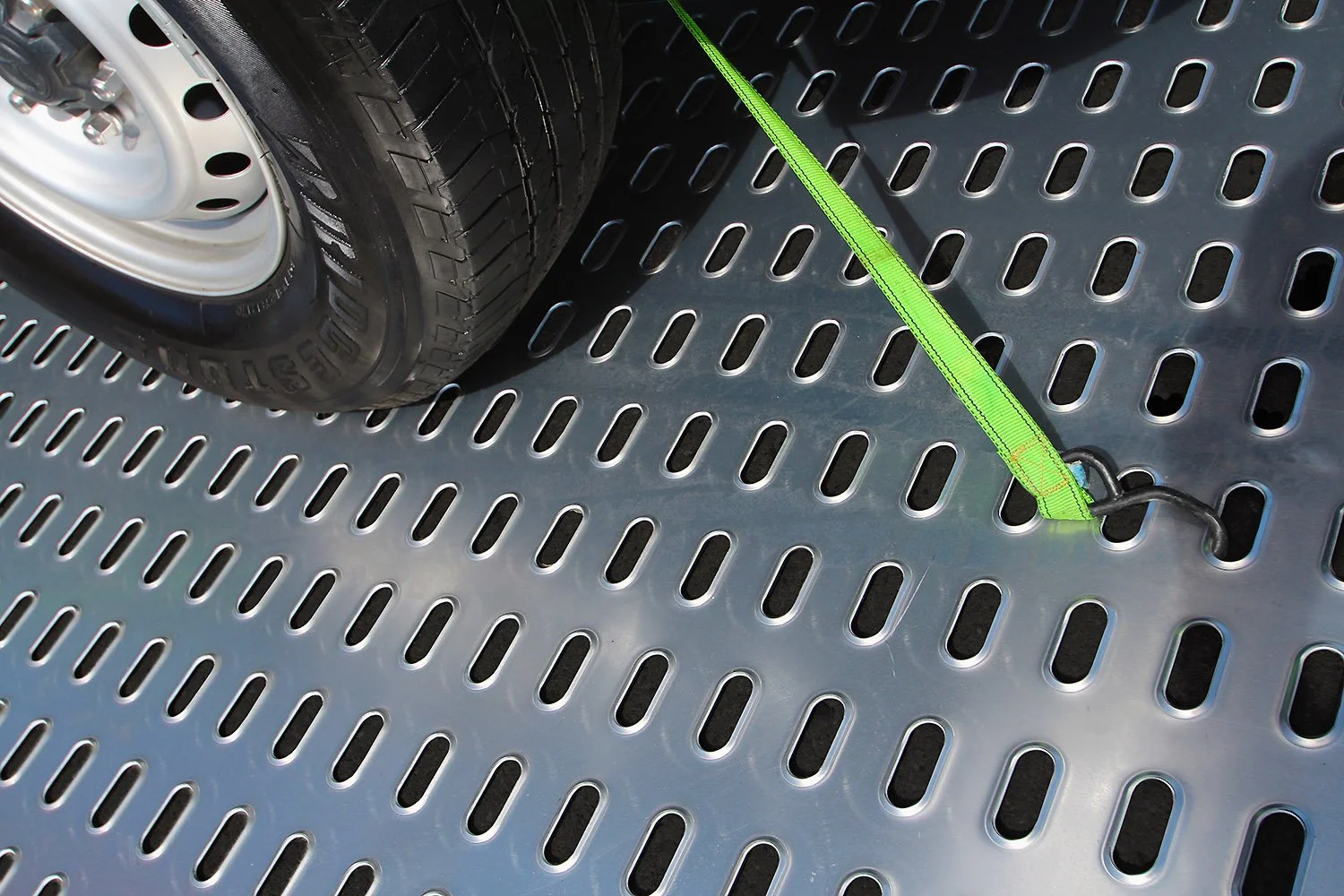

Tilley Omni Sheet
A superior non-skid and tie down option for transportation decking and loading ramps. Automotive haulage, rail, marine, agricultural or architectural, Omni Sheeting is suitable for a variety of industry applications and environments.
*Custom sizes available
-
PMTOMNIA302412B
· 2400×1200
· 3.0mm · Code BPMTOMNIA302412H
· 2400×1200
· 3.0mm · Code HPMTOMNIA402412B
· 2400×1200
· 4.0mm · Code B -
PMTOMNIMS302412B
· 2438x1219
· 3.0mm · Code BPMTOMNIMS302412H
· 2438x1219
· 3.0mm · Code HPMTOMNIMS402412B
· 2438x1219
· 4.0mm · Code B -
PMTOMNIMSHDG302412B
· 2438x1219
· 3.0mm · Code B -
PMTOMNIS304202412B
· 2438x1219
· 2.0mm · S304 · Code BPMTOMNIS316122412
· 2438x1219
· 1.2mm · S316 · Code BPMTOMNIS316162412
· 2438x1219
· 1.6mm · S316 · Code BPMTOMNIS316202412
· 2438x1219
· 2.0mm · S316 · Code B

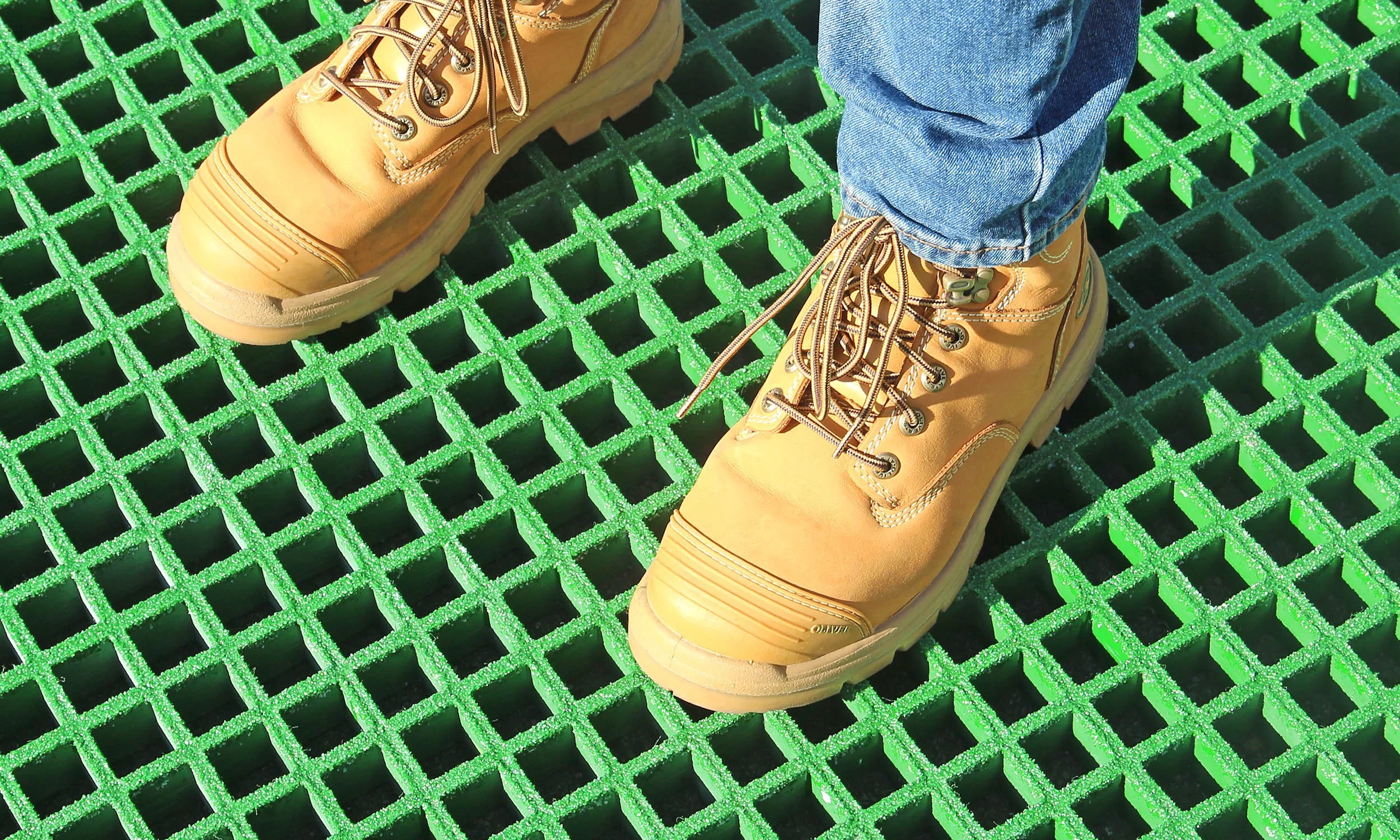

Tilley Fibergrate
Tough, durable and easy to work with, Tilley Fibergrate molded gratings offer a superior Non-Skid surface for a multitude of applications and environments, providing a safe and easy maintenance surface to work from. The larger open area enables greater drainage of liquids and helps to reduce material blockages. Our profiled fixing brackets ensure the grating is secure and free from movement.
With its nonconductive, chemical and heat-resistant properties as well as being tough, durable and easy to work with, Tilley Fibergrate molded gratings offer a superior Non-Skid surface for a multitude of applications and environments.
3660×1220×38mm, 38×38mm Square
TFG3612 GREEN
TFG3612 GREY
TFG3612 YELLOW

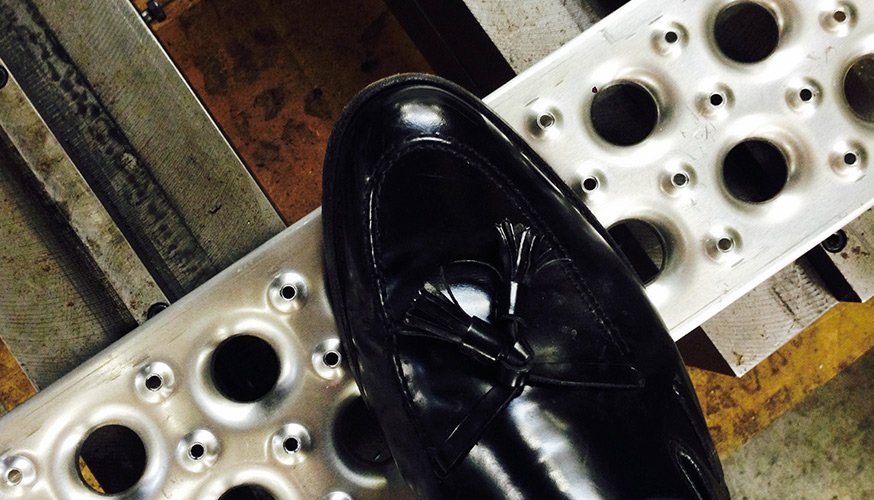

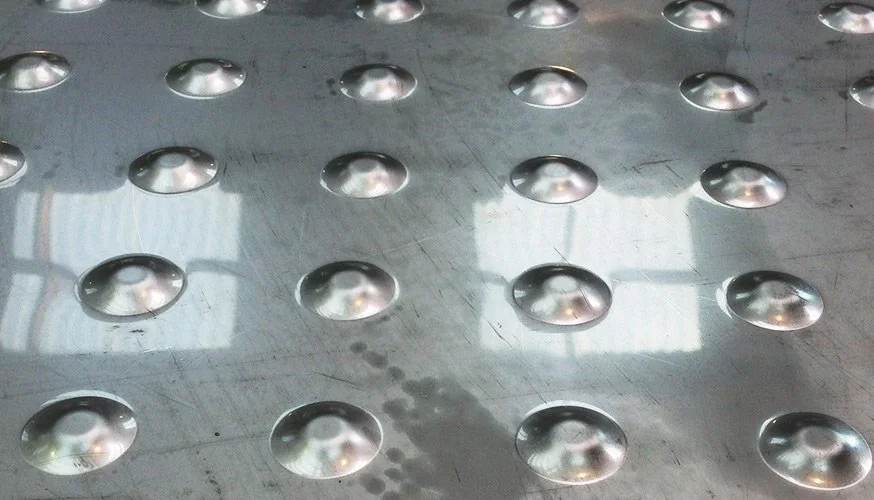

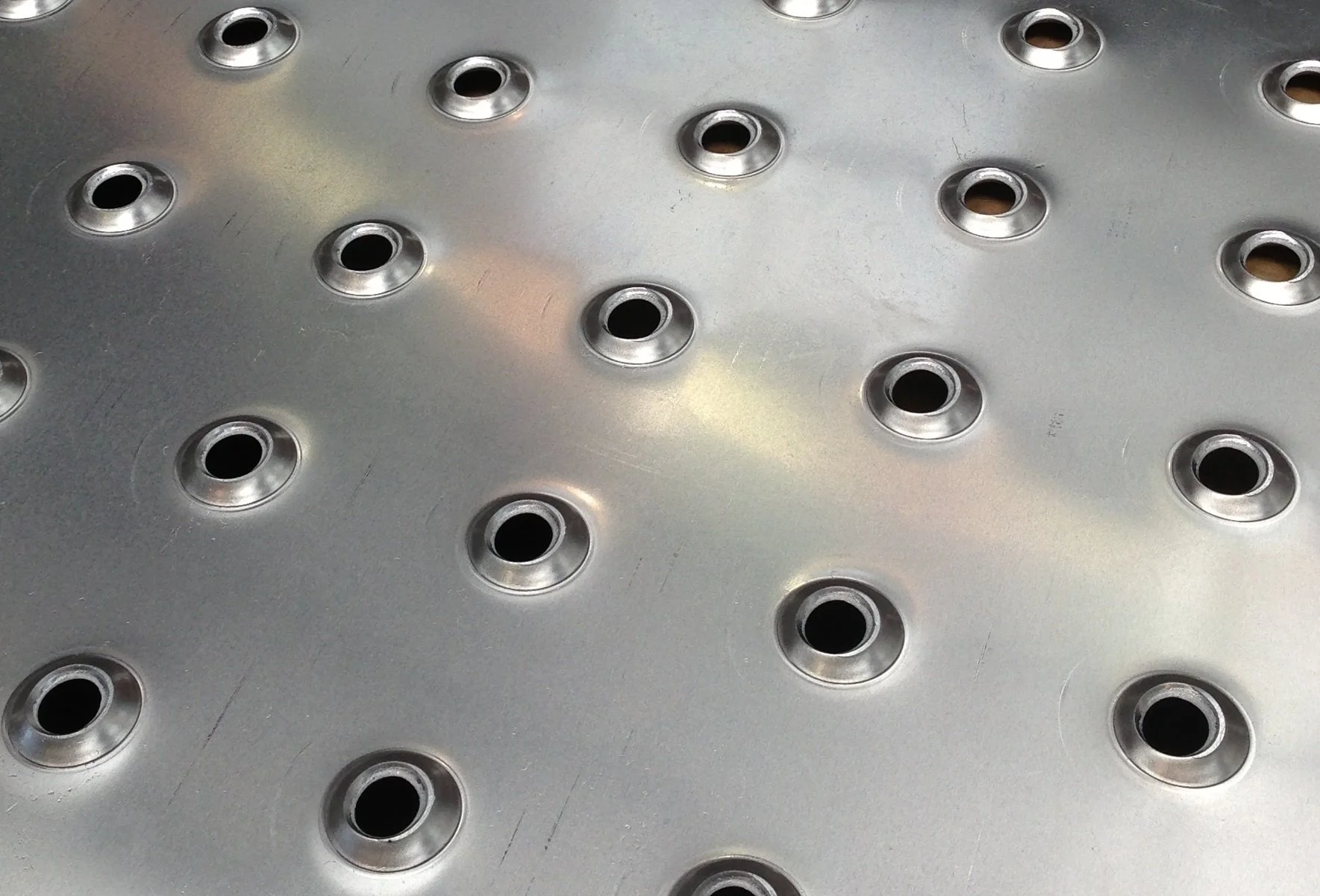

Custom Solutions
In addition to our comprehensive range of stock Non-Skid products, we offer a design and manufacture service for bespoke non-skid solutions.
We bring your ideas to reality with flexibility, responsiveness & timeliness. Our in-house Technology centre uses the latest processing design & drawing software, such as SolidWorks and AutoCAD, to refine your concept before production begins. Capacity and high-speed punching is achieved through our four CNC Turret Punch Presses. Our latest Motorum 2558 Turret Press offers the best in custom and precision punching, with a sheet size capacity of 1525x5000mm and a punching accuracy of +/- 0.1 mm.
We work comfortably with an incredibly wide range of materials, thicknesses and sizes. Whether your design is basic or complex, standard or custom, we offer perforation patterns to suit a multitude of decorative or functional requirements.
